GL-9Z061B is a wide band LTE antenna with compact design for embedded applications. It covers 700-2690MHz frequency range with stable radiation performance and high efficiency across all cellular bands. Features SMA Male connector with 1500mm LMR100 cable.
Home > Product > 4G LTE Antenna > GL-9Z061B
GL-9Z061B is a wide band LTE antenna with compact design for embedded applications covering 700-2690MHz frequency range.

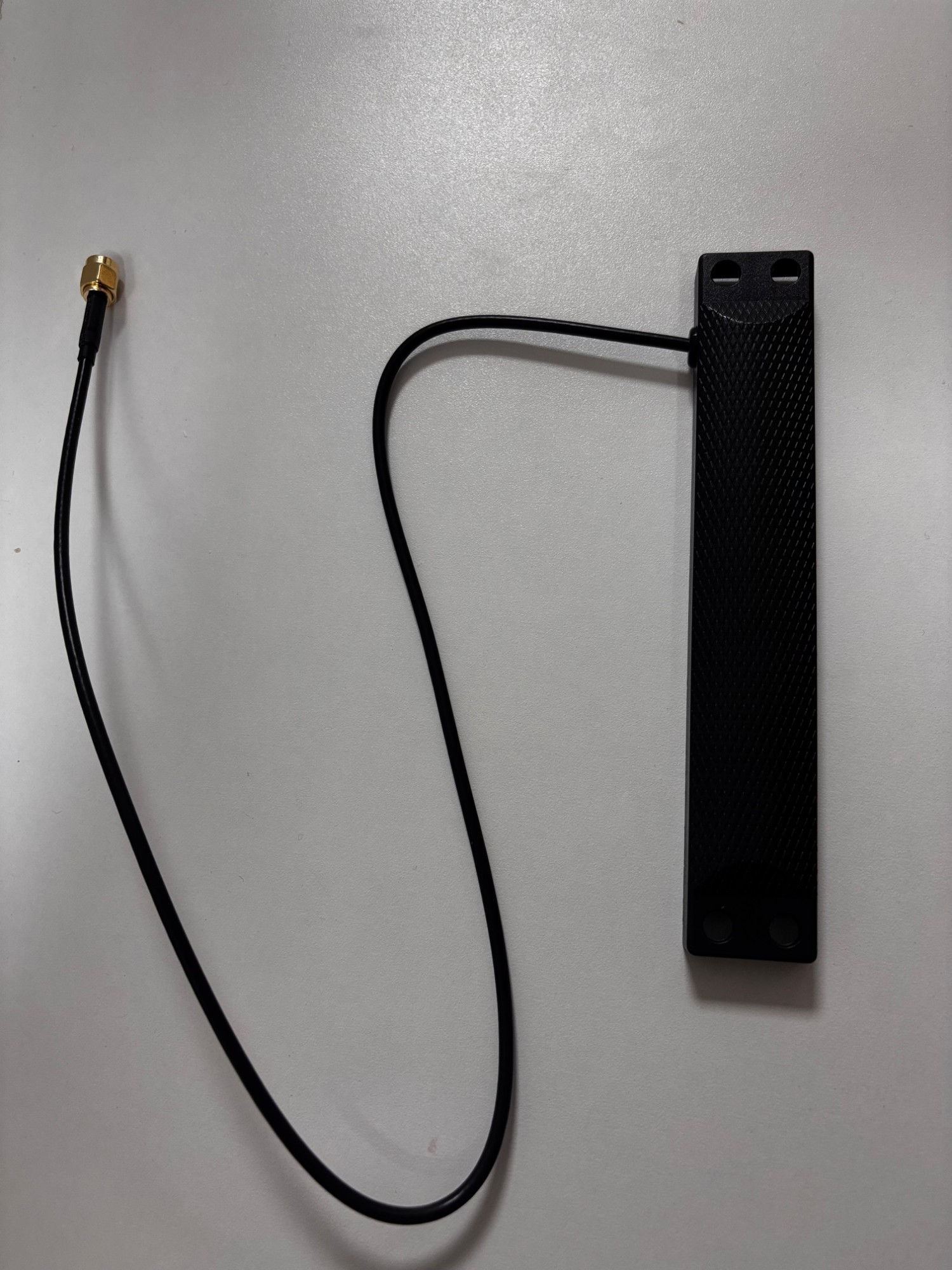

The antenna covers 700-2690MHz frequency range with stable radiation performance and high efficiency across all cellular bands. It features SMA Male connector with 1500mm LMR100 cable, suitable for LTE devices, GSM communication equipment, WCDMA modules, and IoT wireless systems.

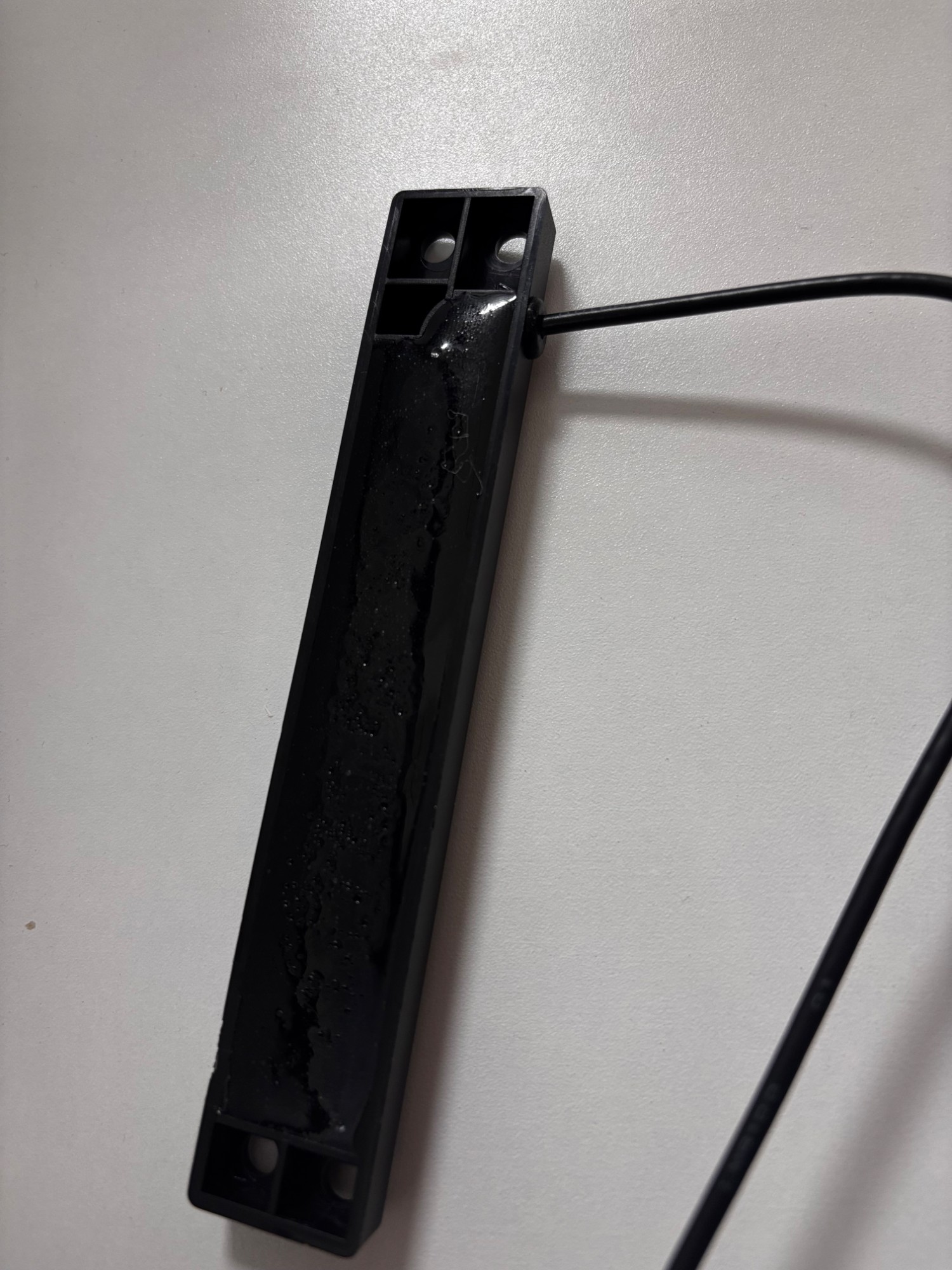

The physical structure uses compact design with high efficiency up to 68% at 894MHz and low VSWR ≤1.5 across all bands. Operating temperature range is -40°C to +85°C.
| Wide Band CoverageSupports 700-2690MHz covering all major LTE, GSM, and WCDMA bands. | Compact DesignOptimized for embedded applications with space-constrained environments. |
| High EfficiencyUp to 68% efficiency at 894MHz with stable performance across all bands. | Low VSWRVSWR ≤1.5 across all frequency bands ensuring optimal signal transmission. |
| SMA Male ConnectorStandard SMA Male connector with 1500mm LMR100 cable for flexible installation. | Wide Temperature RangeOperating temperature from -40°C to +85°C for various environments. |
| System | Parameter | Specification |
|---|---|---|
| Electrical | Model | GL-9Z061B |
| Product Type | 4G LTE Antenna | |
| Frequency Range | 700-2690 MHz | |
| Impedance | 50 Ω | |
| VSWR | ≤ 1.5 | |
| Assembly | Connector | SMA Male |
| Cable Type | LMR100 | |
| Cable Length | 1500 mm | |
| Environmental | Operating Temperature | -40°C ~ +85°C |
| Frequency | VSWR | Efficiency | Gain |
|---|---|---|---|
| 700 MHz | 1.3 | 61% | 4.13 dBi |
| 824 MHz | 1.4 | 67% | 5.79 dBi |
| 894 MHz | - | 68% | 6.36 dBi |
| 960 MHz | 1.0 | 67% | 5.38 dBi |
| 1710 MHz | 1.2 | 51% | 4.22 dBi |
| 1880 MHz | 1.4 | 48% | 3.59 dBi |
| 2500 MHz | 1.4 | - | - |
| 2690 MHz | 1.1 | - | - |
| Application | Why GL-9Z061B Fits |
|---|---|
| LTE Devices and Modules | The wide band coverage supports all major LTE frequency bands with high efficiency. |
| GSM Communication Equipment | The stable VSWR performance ensures reliable GSM signal transmission. |
| WCDMA Modules | The compact design fits space-constrained WCDMA module applications. |
| IoT Wireless Systems | The wide temperature range makes it suitable for various IoT deployment scenarios. |
| M2M Communication Devices | The SMA Male connector and flexible cable enable easy integration into M2M devices. |

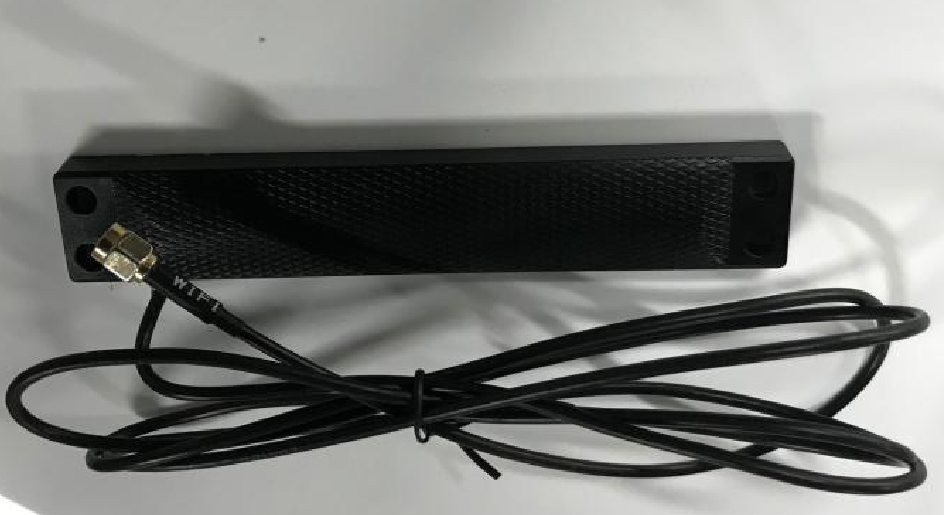

GL-9Z061B is supplied as a complete 4G LTE antenna with SMA Male connector and 1500mm LMR100 cable. Please confirm cable length, connector type, and mounting requirements before ordering.
Request Quote Request Sample Download PDF
| Q1: What frequency range does GL-9Z061B cover? | It covers 700-2690MHz, supporting all major LTE, GSM, and WCDMA bands. |

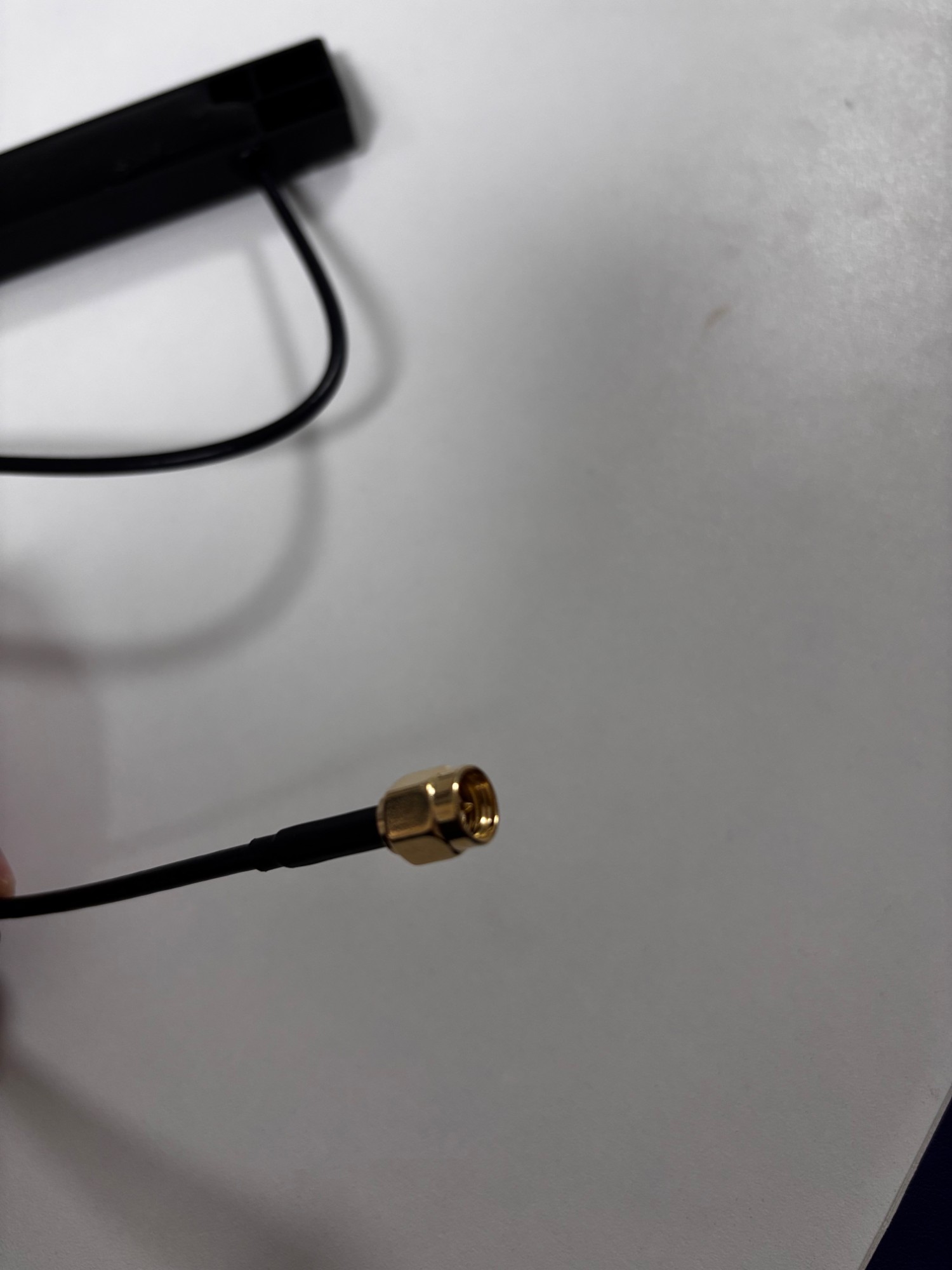

| Q2: What connector and cable does it use? | It uses SMA Male connector with 1500mm LMR100 cable. |
| Q3: What is the VSWR performance? | VSWR ≤1.5 across all frequency bands, with typical values between 1.0-1.4. |
| Q4: What applications is it suitable for? | Ideal for LTE devices, GSM equipment, WCDMA modules, IoT systems, and M2M communication devices. |
| Q5: Can the cable length or connector be customized? | Yes, we offer customization for cable length, cable type, and connector options. Please contact us for details. |
