Yagi Antenna

  • 3GHz Yagi Antenna  GL-DY2110
  • 3GHz Yagi Antenna  GL-DY2110
3GHz Yagi Antenna  GL-DY21103GHz Yagi Antenna  GL-DY2110

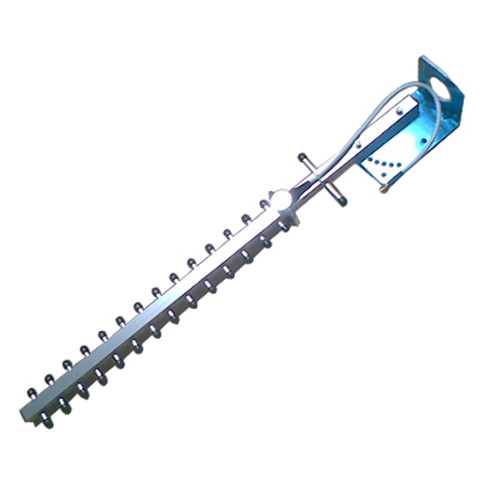

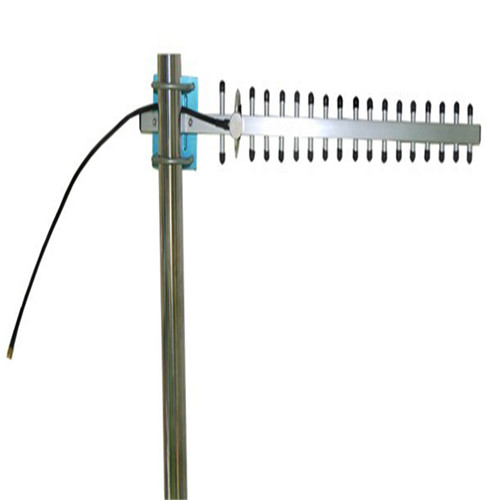

3GHz Yagi Antenna GL-DY2110

  • P/N: GL-DY2110
  • Gain:15dBi
  • SMA male connector
  • Freq:1710-2170MHz
  • Product description: Apply to 3G system
  • INQUIRY



FOB Port: Shanghai or Shenzhen

MOQ: 100PCS

Supply ability:500PCS/DAY

Payment: TT,Paypal,Western Union before shipment


Download Info: here


2100MHz 15dBi Yagi antenna

GL-DYY2100

Electrical Index

Frequency-MHz

1710-2170
VSWR

1.5

F/B Ratio-dB

≥17
Nominal Impedance-Ω

50

Max.Power-W 50
Polarization

Vertical

Horizontal BeamWidth
50°

Vertical Beamwidth

42°

Gain-dBi

15

Lighting Proteciton DC Ground

Mechanical Index

Connector

SMA male

Antenna Dimension-mm

760

Cable-m

RG58,0.3

Mounting Hardware-mm
Ø40-Ø50
Antenna weight-g
500
Reflector material Aluminum

Environmentally Friendly

ROHS Compliant

Temperature-

-40~+85

Humidity-

595


FAQ

Q: Can I get one sample?

A: Yes, sample is available.



Q: Have GNSS antenna 100% assembles well in stock?

A: No, all GNSS antenna will be newly assembled according to your orders including the samples.



Q: What's the delivery time?

A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.



Q: Could i use my own LOGO or design on goods?

A: Yes, customized logo and design on mass production are available.



Q: What's the payment term?

A:T/T, Paypal, western union etc.



Q:May I visit your company?

A: Sure, welcome any time.



Q: How long of the warranty?

A: one year for antennas and half a year for assembly cables and Connectors
