Magnet Antenna

  • 3G Magnet Antenna  GL-DY842
  • 3G Magnet Antenna  GL-DY842
3G Magnet Antenna  GL-DY8423G Magnet Antenna  GL-DY842

3G Magnet Antenna GL-DY842

  • P/N: GL-DYG842
  • Cable: RG58,3m

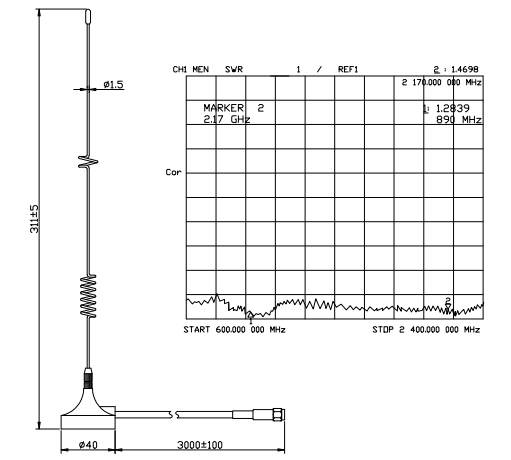

  • Dim: 40*311mm
  • Mounting: Magnet
  • Product description: 3GHz Magnet Antenna with high gain
  • INQUIRY



FOB Port: Shenzhen or Shanghai

MOQ: 100PCS

Supply ability:5000PCS/DAY

Payment: TT,Paypal,Western Union before shipment


Packing information: 250PCS/CTN, 14.1KGS/CTN, CTN Size: 43*38*27CM



Download Info: here


3GHz Magnet Antenna

GL-DYG842

Electrical Index

Frequency-MHz

824-960/1710-2170

VSWR

<2

Nominal Impedance-Ω

50

Polarization

Vertical

Gain-dBi

9

Mechanical Index

Cable Length

RG58,3m

Connector

SMA male

Antenna Dimension-mm

40*311

Installation Way

Magnet

Environmentally Friendly

ROHS Compliant

Temperature-

-40~+85

Humidity-

595


FAQ

Q: Can I get one sample?

A: Yes, sample is available.


Q: Have GNSS antenna 100% assembles well in stock?

A: No, all GNSS antenna will be newly assembled according to your orders including the samples.


Q: What's the delivery time?

A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.


Q: Could i use my own LOGO or design on goods?

A: Yes, customized logo and design on mass production are available.


Q: What's the payment term?

A:T/T, Paypal, western union etc.


Q:May I visit your company?

A: Sure, welcome any time.


Q: How long of the warranty?

A: 1 year for antennas and half a year for assembly cables and Connectors
