868MHz Antenna

  • 10dBi Fiberglass Antenna GL-DYF86810
  • 10dBi Fiberglass Antenna GL-DYF86810
  • 10dBi Fiberglass Antenna GL-DYF86810
10dBi Fiberglass Antenna GL-DYF8681010dBi Fiberglass Antenna GL-DYF8681010dBi Fiberglass Antenna GL-DYF86810

10dBi Fiberglass Antenna GL-DYF86810

  • P/N: GL-DYF86810
  • Gain:8dBi
  • Dim: 32*2100mm
  • 1.2KG
  • Product description: Apply to 868MHz Frequency WLAN/Wi-Fi/ISM frequency
  • INQUIRY


FOB Port: Shanghai or Shenzhen

MOQ: 100PCS

Supply ability:5000PCS/DAY

Payment: TT,Paypal,Western Union before shipment

Download Info: here


Technical Index

Frequency

868±10MHz

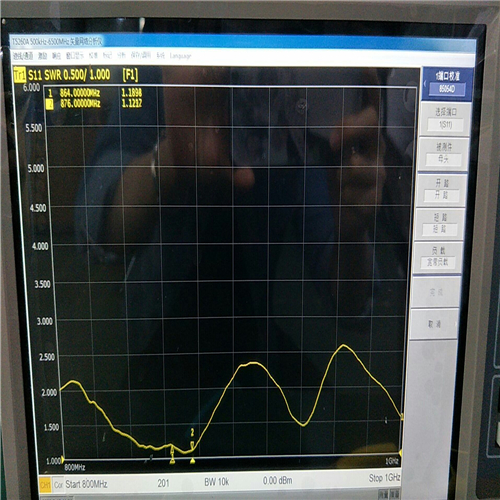

V.S.W.R

≤1.5

Gain

10dBi

Horizontal Beamwidth

360°

Vertical Beamwidth

25°

Polarization

Vertical

Input Impedance

50Ω

Max Power

50W

Lighting Protection

DC

Mechanical Index

Connector

SMA male

Antenna Dimension

Ф32×2100mm

Antenna Weight

1.2kg

Antenna Material

Fiberglass

Antenna Color

Gray

Working Temperature

-40°c60°c

Wind Velocity

60 m/s

Pole Diameter

3550


FAQ

Q: Can I get one sample?

A: Yes, sample is available.


Q: Have GNSS antenna 100% assembles well in stock?

A: No, all GNSS antenna will be newly assembled according to your orders including the samples.


Q: What's the delivery time?

A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.


Q: Could i use my own LOGO or design on goods?

A: Yes, customized logo and design on mass production are available.


Q: What's the payment term?

A:T/T, Paypal, western union etc.


Q:May I visit your company?

A: Sure, welcome any time.


Q: How long of the warranty?

A: one year for antennas and half a year for assembly cables and Connectors
