GPS Internal Antenna

  • GPS Internal ceramic Antenna with RG1.13 cable
  • GPS Internal ceramic Antenna with RG1.13 cable
  • GPS Internal ceramic Antenna with RG1.13 cable
GPS Internal ceramic Antenna with RG1.13 cableGPS Internal ceramic Antenna with RG1.13 cableGPS Internal ceramic Antenna with RG1.13 cable

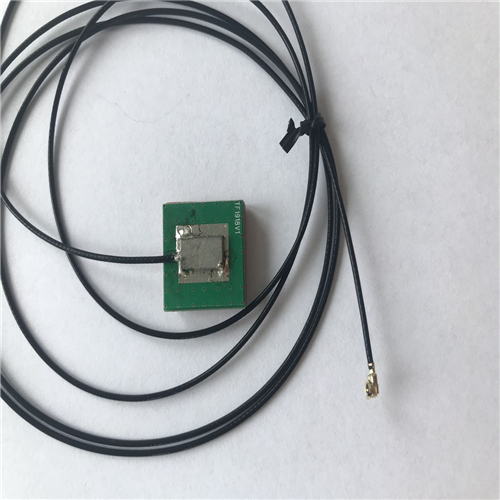

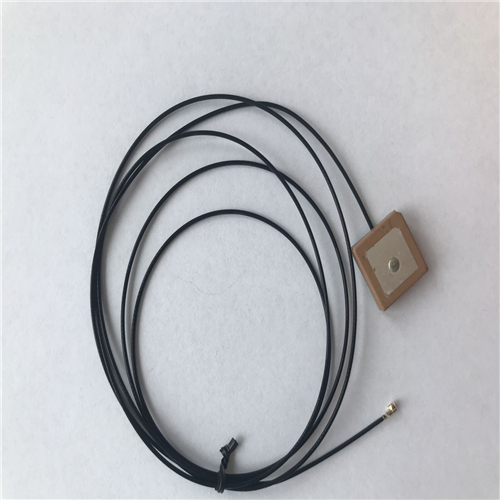

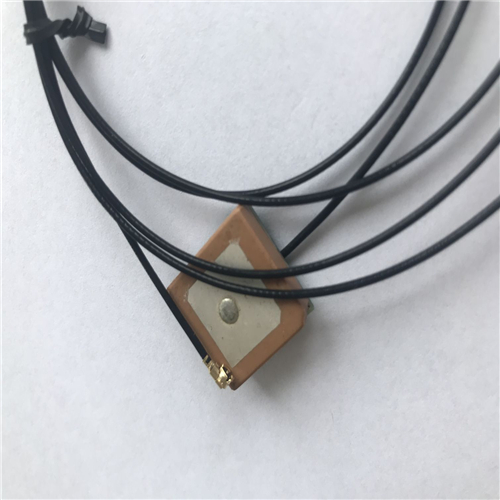

GPS Internal ceramic Antenna with RG1.13 cable

  • P/N: GL-DYN047
  • Cable: RF1.13,black or grey
  • Connector: IPEX
  • Dimension: 18.6*18.6*7.5mm
  • Product description: GPS Internal ceramic Antenna with RF1.13 cable GL-DYN047
  • INQUIRY

FOB Port: Shanghai or Shenzhen

MOQ: 500PCS


Supply Ability:5000 Pcs/Day


Payment: TT,Paypal,Western Union


Down load Info: here


GPS Internal Antenna     GL-DYN047

Electrical Index

Frequency-MHz

1575.42±3

Band Width-MHz

CF±4

VSWR

1.5

Nominal Impedance-Ω

50

Polarization

RHCP,

Axial Ratio

5dB(max)

Gain

2dBic(Zenith)

LNA Gain

16±2dB

Noise Figure

1.5

Ex-band Attenuation

30dB@CF±40MHz

Supply Voltage

2-3.6V DC

Current Consumption

5mA

Mechanical Index

Cable Length

RF1.13

Connector

U.FL

Antenna Dimension-mm

15*15*4

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant

Temperature-℃

-40~+85

Humidity-

Up to 75





FAQ

Q: Can I get one sample?

A: Yes, sample is available.


Q: Have GNSS antenna 100% assembles well in stock?

A: No, all GNSS antenna will be newly assembled according to your orders including the samples.


Q: What's the delivery time?

A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.


Q: Could i use my own LOGO or design on goods?

A: Yes, customized logo and design on mass production are available.


Q: What's the payment term?

A:T/T, Paypal, western union etc.
