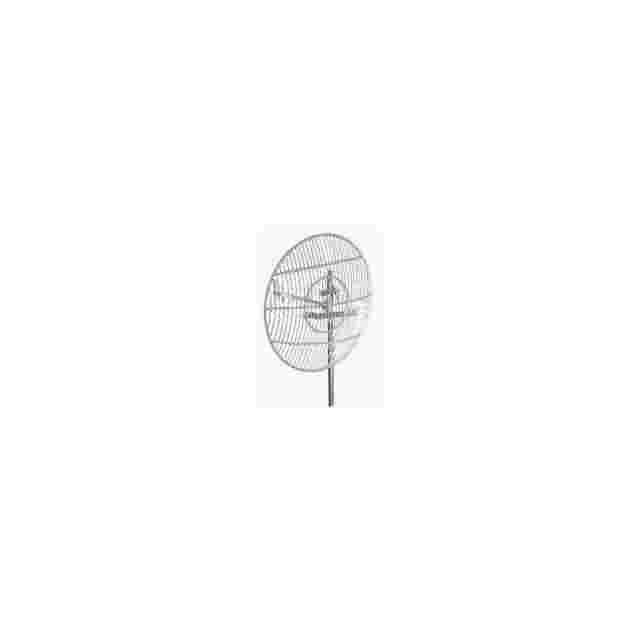

GL1500HSD15-24

Frequency(Mhz) 1400-1550 Bandwidth(MHz) 150 Gain(dBi) 24 Vertical?Beamwidth(°) 8.5 Horizontal Beamwidth(°) 10 F/B Ratio(dB) ≥30 VSWR ≤1.5 Nominal?Impedance(Ω) 50 Polarization Vertical Maximum Power(W) 100 Dimensions(m) φ1.5 Weight(kg) 25 Connector N Female or Customization Rated Wind Velocity(m/s) 60 Mounting Mast Diameter(mm) φ50-70
