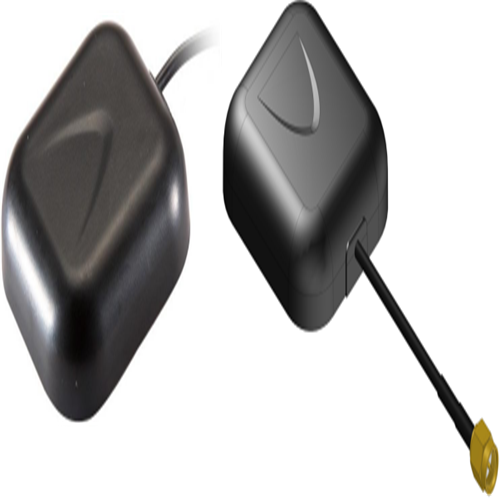

GPS+4G Combo antenna GL-DY0571

  • P/N: GL-DY0571
  • Cable: RG174,5m
  • Connector: SMA male
  • Mounting: Magnet
  • Product description: This application shall apply for antenna unit which shall be used with an engine for an automobile
  • INQUIRY



FOB Port: Shanghai

MOQ: 500PCS


Supply Ability:5000 Pcs/Day


Payment: TT,Paypal,Westen Union


Download Info: here



Product

GPS+4G Antenna

P/N

GL-DY0571

Electrical Index

Frequency-MHz

1575.42±1/700-2700

Band Width

CF±5MHz

Gain-dBi

2.0(Zenith)/2

VSWR

1.5

Nominal Impedance-Ω

50

Polarization

RHCP,Liner

Axial Ratio

3dB(max)

LNA Gain

28±2dB

Noise Figure

1.5

V.S.W.R

2.0

Supply Voltage

2.2-5V DC

Current Consumption

5-15mA

Mechanical Index

Cable Length

5,RG174 for each part

Connector

SMA male

Antenna Dimension-mm

59.2*52.5*15

Installation Way

Magnet

Ingress Protection

IP65~IP67(exclude cable outlet)

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant

Temperature-

-40~+85

Humidity-

595


FAQ

Q: Can I get one sample?

A: Yes, sample is available.


Q: Have GNSS antenna 100% assembles well in stock?

A: No, all GNSS antenna will be newly assembled according to your orders including the samples.


Q: What's the delivery time?

A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.


Q: Could i use my own LOGO or design on goods?

A: Yes, customized logo and design on mass production are available.


Q: What's the payment term?

A:T/T, Paypal, western union etc.


Q:May I visit your company?

A: Sure, welcome any time.


Q: How long of the warranty?

A: one year for antennas and half a year for assembly cables and Connectors
